Thermal Mass Flow Meters for Industrial Applications

Industrial Gas Flow Meters must be rugged, packed with features and options, and ready to measure out of the box. Plant operators must often keep the process gas flow uninterrupted in order to keep production running. Shutting down production is costly and inefficient. Here are some great features of the award-winning industrial gas mass flow meters by Fox:

  • Easy installation with insertion and inline style flow meters
  • A no-moving-parts design
  • Wide measurement range (up to 1,000:1, 100:1 typical)
  • Pressure or temperature compensation not required
  • NIST-traceable compensation
  • Extensive agency approvals

Thermal Gas Flow Meters can be used in so many industrial plants:

  • Aluminum & Steel Production

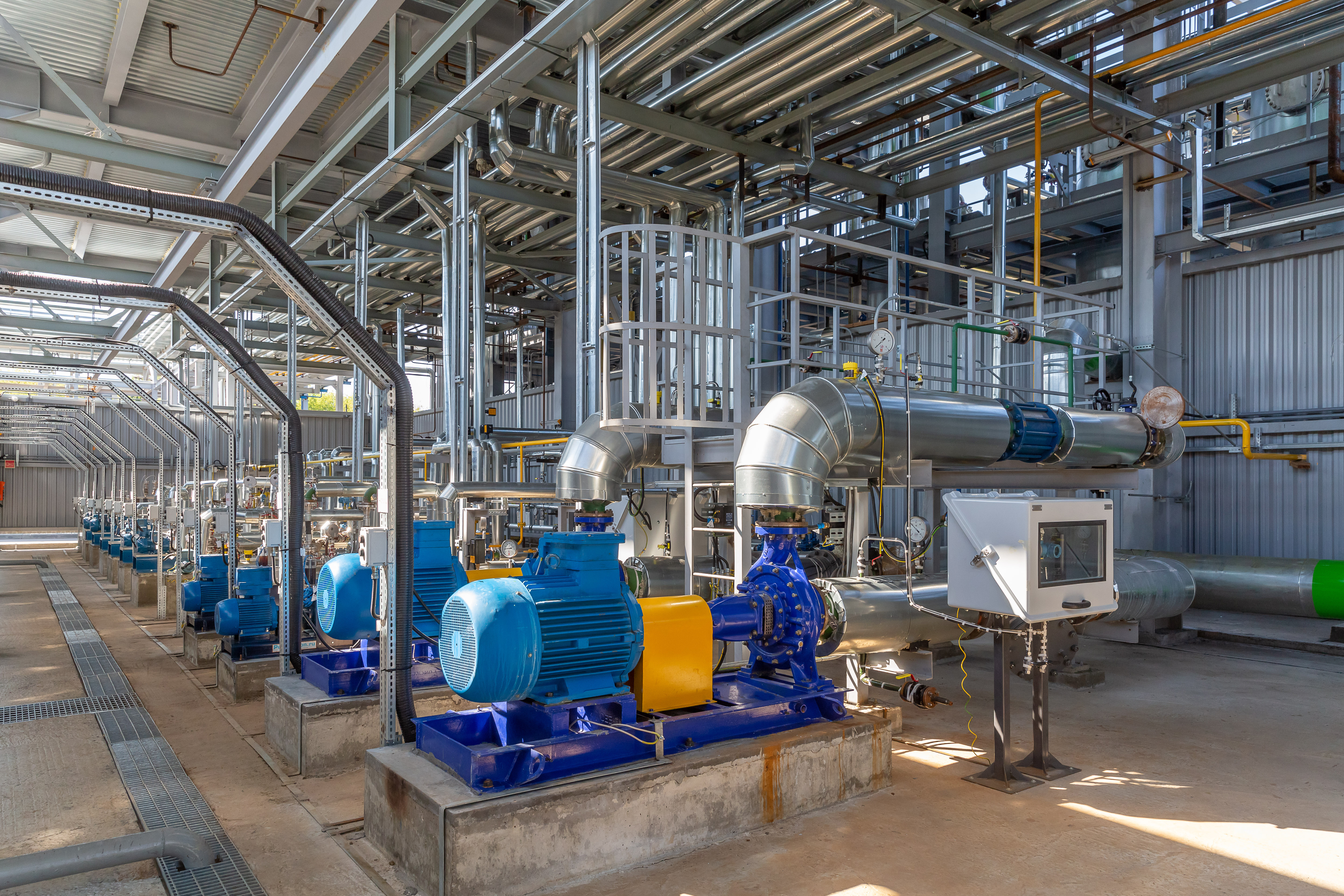

  • Chemical and Petrochemical Plants
  • Pulp & Paper Plants
  • Refineries and Gas Processing Plants

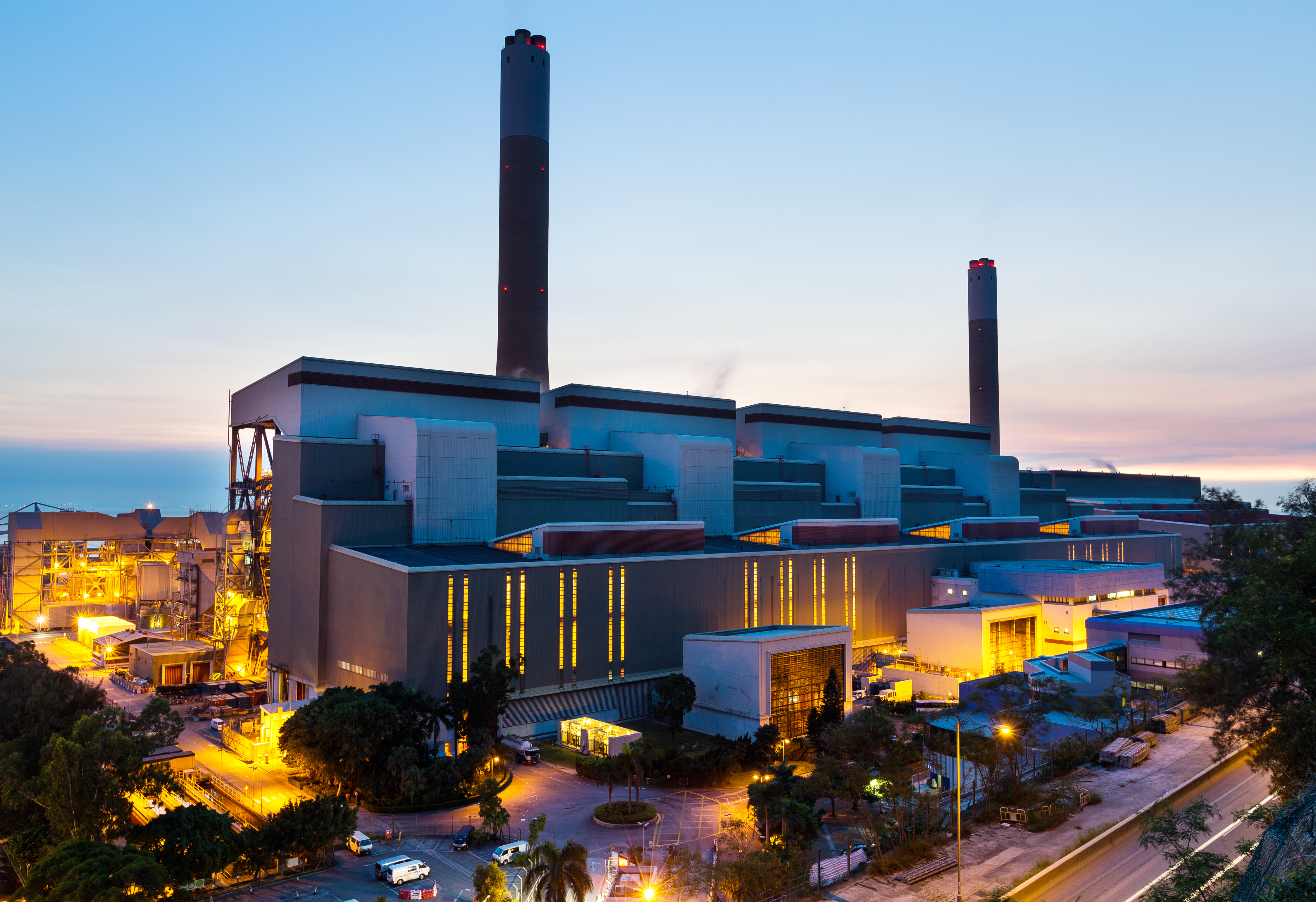

  • Power Plants
  • Glass & Ceramics Manufacturing
  • Textile Mills
  • Automotive Manufacturing
  • Food & Beverage Production
  • Pharmaceutical Industry

Some Common Gases and Applications:

  • Natural Gas flow measurement

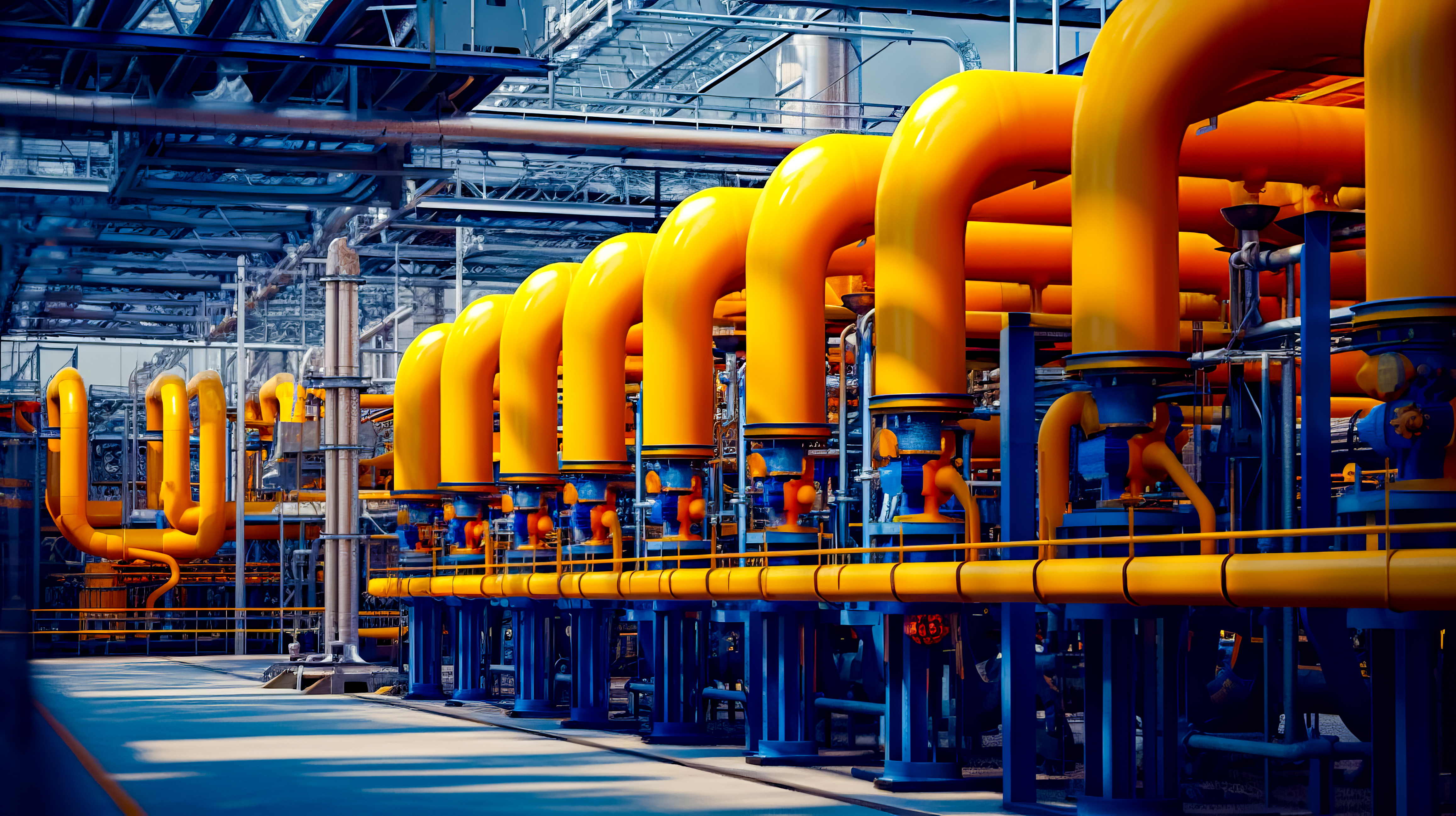

  • Sub metering natural gas or fuel flow
  • Air flow measurement
  • Industrial Dryer Air Flow Measurement
  • Combustion air flow measurement

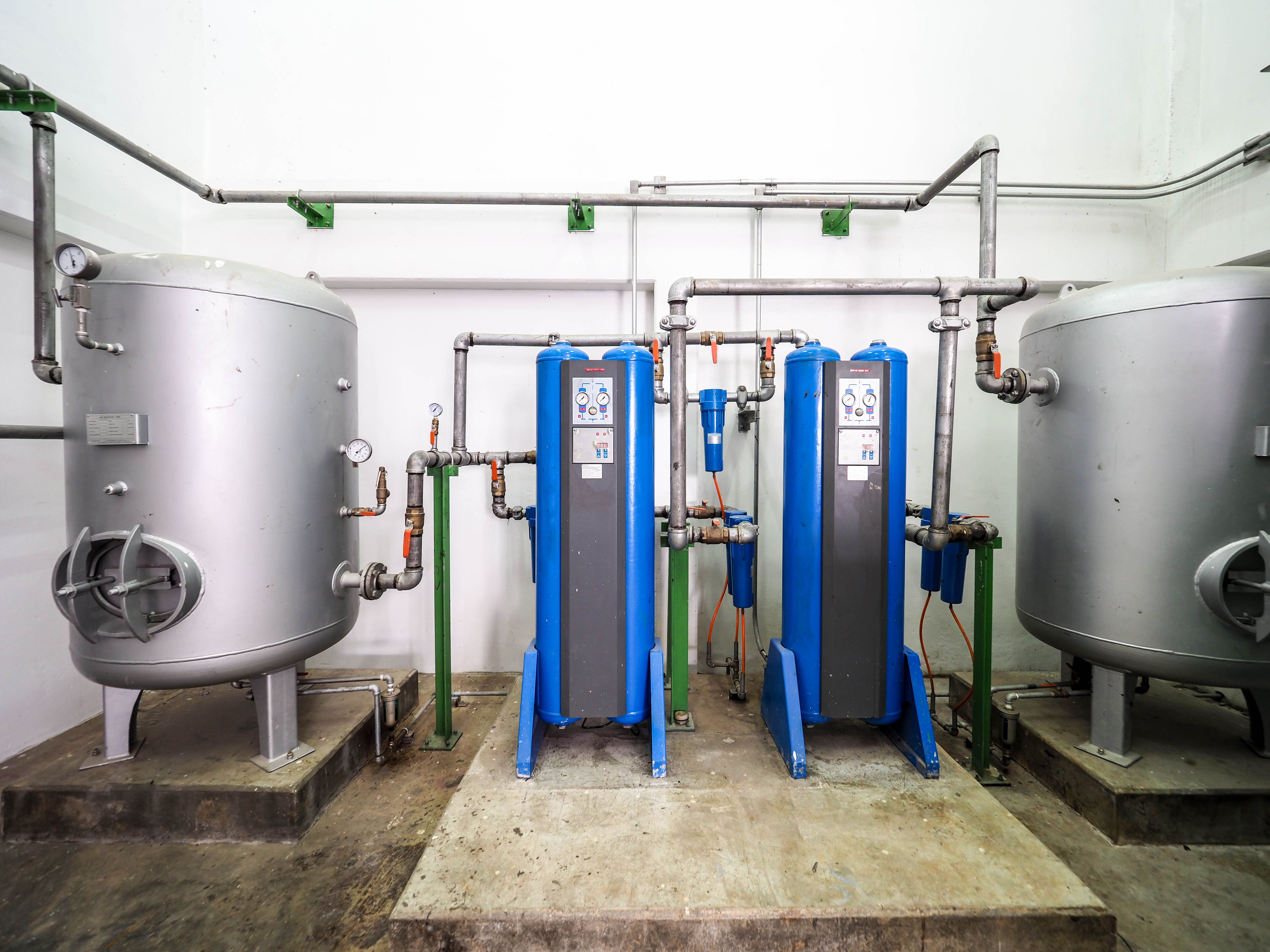

  • Compressed air flow measurement
  • Exhaust air flow measurement
  • Vent or flash gas flow measurement
  • Flare and Combustor gas flow measurement
  • Fuel gas flow
  • Coal emissions
  • Methane Flow Meters
  • Propane Gas Flow Measurement

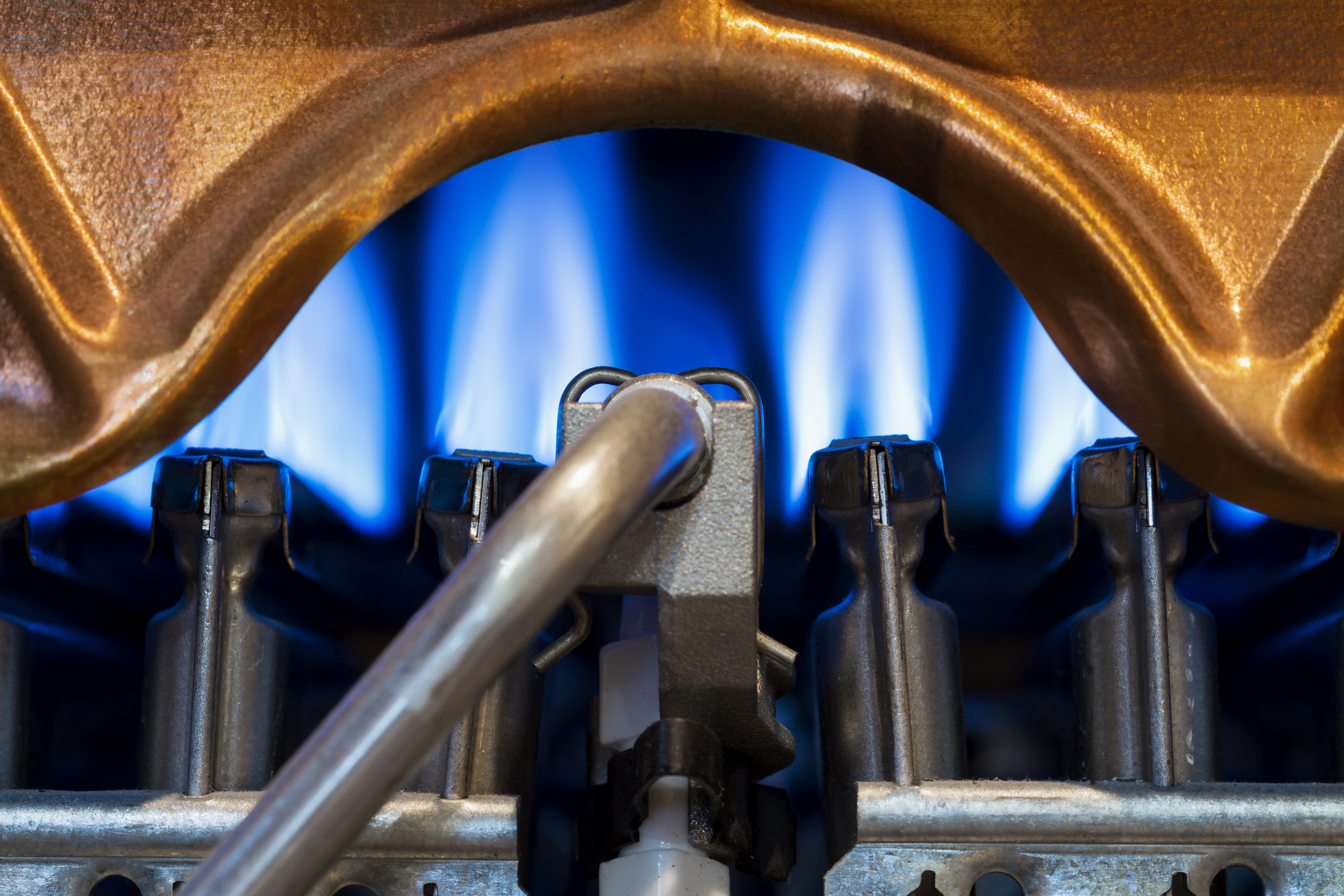

  • Flow Meters for Burners and Combustion Gas

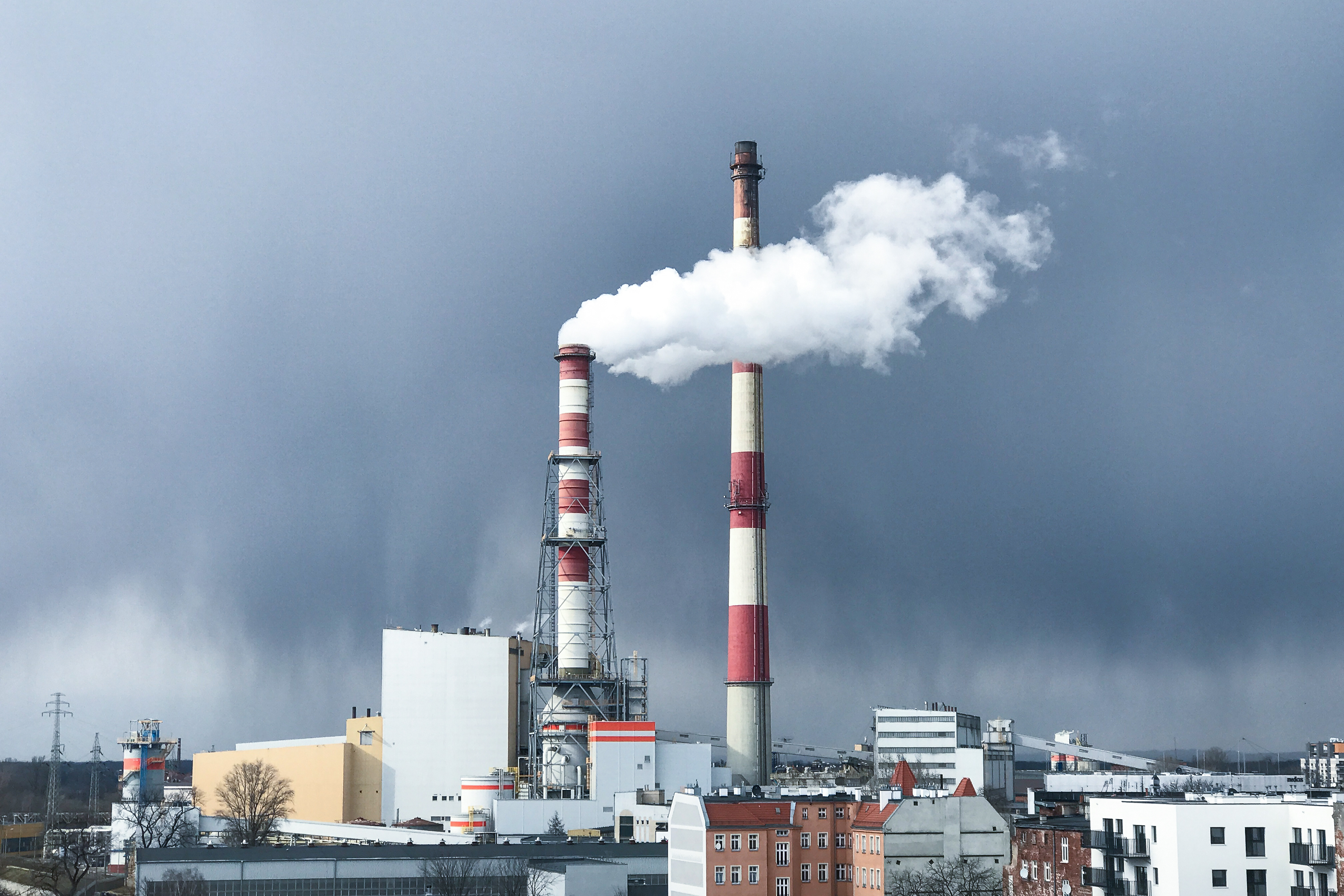

  • Carbon Dioxide flow measurement or emissions monitoring
  • Nitrogen blanketing
  • Hydrogen gas flow measurement
  • Ozone flow measurement
  • Paint booths
  • Process Heater Combustion Efficiency
  • Air and Nitrogen gas Purge Systems
  • Leak / Seal Testing
  • Ventilation Flow Measurement
  • Energy Accounting
  • Other Pure and Mixed Gas Flow Measurement

Industrial Applications

Fox Flow Meters for Aluminum and Steel Production.
Aluminum & Steel Production
Oxygen, Nitrogen, and argon are frequently used in the steel industry. Oxygen is used to remove excessive Read more >>
carbon during cast iron and steel production. Blast furnaces are often fed an oxygen injection that must be monitored by a flow meter that can operate in steel manufacturing plants.

Nitrogen is used more often as a shielding gas to protect processes against ambient air and its oxidizing components (moisture, oxygen, carbon dioxide). Nitrogen may also be used in a purification process in aluminum production.

High quality welding and metal production require the absence of ambient air and its main components. Argon or argon-gas mixes are used as shielding gases or to degas liquid steel for higher quality products.

Compare Meter Specs<< Read less
Fox Flow Meters for the Petrochemical Industry.
Petrochemical Industry
Carbon Dioxide, Oxygen, Nitrogen, Carbon Monoxide, Hydrogen, and Helium are the primary single componentRead more >>
gases, such as hydrogen or nitrogen, or multiple component gases, such as hydrogen sulfide. Chemical process and petrochemical gases include the uses of halogens for oxidation. Halogens include iodine, chlorine, fluorine, and bromine. These chemical processing gases are used in chemical reactions to produce halide ions, or salts. Halogens are elements that will react with most metals, making them useful in many chemical processes. Other common chemical process and petrochemical gases include oxygen for creating building block chemicals such as nitric acid and ethylene oxide; nitrogen for providing an inert, nonflammable processing environment; and hydrogen for manufacturing ammonia and methanol, as well as for hydrogenation processes to produce soaps, plastics, insulation, and other specialty chemicals.

Compare Meter Specs << Read less
Fox Flow Meters for Gas Refineries.
Gas Refineries
Environmental protection laws dictate cleaner refining processes and fuels, coupled with lower emission
Read more >>
levels. Refineries require large quantities of gases to control various processes. Pure oxygen, for example, is used to increase the efficiency of wastewater treatment. Adding oxygen to the air in a Claus plant can help increase plant capacity and remove bottlenecks, also improving ammonia conversion by removing sulphur oxides (SOx). Oxygen enrichment in a fluid catalytic converter can also increase capacity and give operators the flexibility to handle heavier feeds and loads by removing nitrogen oxides (NOx).

Hydrogen plays an essential role in producing cleaner burning transportation fuels. It is essential in today’s refining industry for upgrading heavy crude oils into refined fuels, and helping to meet increasingly tighter transportation fuel specifications.

Nitrogen is used to blanket storage tanks and purge pipelines, nitrogen can also strip Volatile Organic Compounds (VOCs) from wastewater and reduce VOC emissions.

Compare Meter Specs << Read less
Fox Flow Meters for Glass & Ceramics.
Glass & Ceramics
Fuel-fired kilns are used in the ceramics industry to create bricks, tiles, stoneware, or porcelain. Natural
Read more >>
gas is often used as fuel for kilns and also for large glass furnaces. Production costs are directly tied to the efficiency of the kilns and furnaces and the detection of leaks can save costs and ensure production floor safety.

Compare Meter Specs << Read less
Fox Flow Meters for the Automotive Industry.
Automotive
Automotive manufacturing companies use a wide variety of gases on the assembly line and throughout the
Read more >>
manufacturing process. The facilities have vast compressed air systems that are not immune to costly leaks or inefficiencies. Natural gas is also used for various types of production equipment. Ventilation air flow on the production floor, the HVAC system, and the paint booth are all places where gas flow measurement can help check for inefficiencies.

Testing radiator heat exchangers and torque converters for leaks is a common use for helium. Helium can also be mixed with argon to improve shielding gas characteristics for laser welding or used in the production of air bags. It is also important for high pressure gas quenching commonly used with low pressure carburizing to minimize distortion in critical components.

Oxygen is used in foundries that make automotive coatings, as a plasma cutting gas, an assist gas for laser cutting, and is sometimes added in small quantities to shielding gases.

As a component of heat treating atmosphere, hydrogen reacts with oxygen to produce a bright finish on steel parts. It is also used, either alone or as part of a mix, as a quench gas for high pressure gas quenching because of its high heat transfer properties. When used as an alternate fuel, in either a fuel cell or directly in an internal combustion engine, hydrogen also plays a key role in reducing emissions.

Assembly plants, use argon in combination with other welding gases to weld auto components such as exhaust systems, suspensions, seats, axles, and other components in order to block ambient air that might reduce the quality of welds with any material. It’s also commonly used in airbags.

Nitrogen is ideal for processes like tire curing, autoclave inerting, and heat treating for various automotive components. It is also used as an assist gas for laser cutting and enhances plasma-cutting processes. It can also be used to shrink-fit engine and transmission parts, and to manufacture electronic components for seats, stereo systems, anti-lock brakes and air conditioning.

Compare Meter Specs << Read less
Fox Flow Meters for Pharmaceutical.
Pharmaceutical
Process reproducibility, drug uniformity, and product quality are important goals in the pharmaceutical
Read more >>
industry. Temperature control engineering can help meet these goals, with the right gas efficiencies tied into the procedures. Carbon Dioxide, Nitrogen, Oxygen and Ethanol are the most common gases used in these processes.

As a gas, Carbon Dioxide is used in bench top incubators. In manufacturing, it is used in super critical fluid chromatography.

Nitrogen is commonly used for blanketing — protecting a process from moisture intrusion, oxidation, degradation and contamination. Additional uses include purging, pressure transferring, mixing and capturing air emissions.

Ethanol is used for pill coating. Uncoated tablets (or pills) are fed into a tumbler where a small-bore feeder sprays a bonding mist of the ethanol carrier, a color tint, a lubricant, or even the drug itself. Depending on the type of coating, the tablets are tumbled anywhere from 30 minutes to 4 hours, with close monitoring of the ethanol feed, temperature, and humidity.

The ethanol concentration in the exhaust is directly proportional to the coating thickness on the tablets. A too-high ethanol level means a too-thick coating, so the spray mist ratio is decreased. The ethanol proportion in the exhaust then verifies the feeder setting.

Compare Meter Specs << Read less
Fox Flow Meters for the Chemical Industry.
Chemical Industry
Carbon Dioxide, Oxygen, Nitrogen, Carbon Monoxide, Hydrogen, and Helium are the primary gases used by
Read more >>
the chemical industry. While Nitrogen can be used in pressurization, it can also be used as a propellant or as a shield gas for materials that react to oxygen. The production of ammonia along with a host of non-edible oils, plastics, and insulation require the use of hydrogen gas. Pure oxygen is used to produce a number of important chemicals or increase production capacity and efficiency of oxidation processes.

Compare Meter Specs << Read less
Fox Flow Meters for the Pulp & Paper Industry.
Pulp & Paper Industry
Carbon dioxide is an industrial gas used in the pulp and paper industry to control pH levels, enhance
Read more >>
pulp yield, and wash bleached stock. As an industrial gas, oxygen helps you meet stringent environmental regulations through use in delignification, oxidative extraction and wastewater treatment.

Compare Meter Specs << Read less
Fox Flow Meters for Power Plants.
Power Plants
Natural gas has become a popular fuel for the generation of electricity due to its clean-burning nature. While
Read more >>
coal is the cheapest fossil fuel, it is also the dirtiest, releasing the highest levels of pollutants into the air. Regulations surrounding power generation and the use of coal have been put into place to lessen environmental damage. Natural gas is fed into gas turbine and combustion engine plants.

Compare Meter Specs << Read less
Fox Flow Meters for the Textile Industry.
Textile
Textile mills often use natural gas to power spinning and weaving equipment. Textile companies with multiple
Read more >>
buildings also need meters to compare demand by sub-metering.

Compare Meter Specs << Read less
Fox Flow Meters for the Food & Beverage Industry.
Food & Beverage
Oxygen, Carbon Dioxide, and Nitrogen are the most common gases used in the food and beverage
Read more >>
industry.

For fish farms, dissolved oxygen is a critical part of raising healthy fish. It is also needed in wastewater treatment using aeration and aerobic digestion processes.

The beverage industry is dependent on carbon dioxide as the essential ingredient in carbonated beverages. It also helps with cooling, chilling, and freezing applications.

Besides Carbon Dioxide, Nitrogen is also widely used as a cooling or freezing agent for quick frozen foods. It also helps guard against spoilage, discoloration, and food packaging.

Compare Meter Specs << Read less

Flowmeters

FT2A Flow Meter for Natural Gas Applications.
Natural Gas Flow Meters
Natural Gas is used as fuel for equipment across different industries. Fox natural gas flow meters offer the highest safety and accuracy standards. View Product Info >>
FT1 Flow Meter for Air Applications.
Air Flow Meters, Compressed Air Flow Meters
Air flow rate for compressed air systems, combustion air systems, and exhaust air must be measured with consistent and accurate readings. Try a Fox mass flow meter. View Product Info >>
FT3 Flow Meter for Nitrogen Applications.
Nitrogen Flow Meters
Nitrogen is used in food processing, Pulp and Paper, Steel, and Chemical and Petrochemical Plants. Get reliable instrumentation for nitrogen blanketing or seal leak detection. View Product Info >>
FT1 Flow Meter for Oxygen Applications.
Oxygen Flow Meters
Burners used in glass or ceramics manufacturing need the right oxygen to fuel ratio to reduce NOx emissions. Meet today’s regulatory requirements with a Fox meter. View Product Info >>
FT3 Flow Meter for Argon Applications.
Argon Flow Meters
Argon is used in the production of high quality metals and alloys by preventing contact between molten metal and ambient air. Track gas usage with a mass flow sensor. View Product Info >>
FT2A Flow Meter for Carbon Dioxide Applications.
Carbon Dioxide Flow Meters
Measuring and reporting CO2 gas emissions from facility operations may be required for regulatory compliance. Try a non-resetting totalizing gas flow meter. View Product Info >>
FT1 Flow Meter for Hydrogen Applications.
Hydrogen Flow Meters
Pharmaceutical and medical gases, like hydrogen are gases manufactured for medical, pharmaceutical, and biotechnology companies. Measure flow accurately. View Product Info >>
