Air Flow Meters for Air Applications

Fitting your systems with accurate air flow meters is an effective first step in controlling energy costs.  As the price of power continues to rise, many plant managers are using sensor data collected by air flow meters to assist in improving control of compressors, blowers and other air systems.

With a mass air flow meter system, costly air and gas leaks can be identified on a system-wide scale. This is especially important when considering that leaks are frequently a significant source of lost energy, sometimes wasting up to 30% of output in standard cubic feet or liters per minute of airflow.

Compressed air system leaks can also cause a drop in system pressure, force equipment to cycle more frequently, and lead to additional maintenance requirements and downtime. Anywhere from 7 to 10 times more costly than electrical energy, compressor systems require optimal efficiency and air flow control.  Repairing leaks is critical to reducing plant operating and maintenance costs. Fox Flow Meters use a high-accuracy sensor to provide an excellent method for evaluating compressor efficiency and locating these serious gas leaks.

Air injection used in combustion processes reduces instability caused by pressure oscillations and helps to reduce NOx emissions. Air injection methods can change the flame structure and reduce heat-release fluctuations in combustors thereby improving performance. Measuring the air flow of injection to keep flow at a stable flowrate is essential to the process.

In certain industrial applications, air-cooled heat exchanger systems are becoming more common than water cooling systems, especially in areas where water may be scarce. Air cooling can be less complex and more cost-effective than water cooling systems. To diagnose problems or to conduct system performance assessments, data on air flow within the system must be collected.

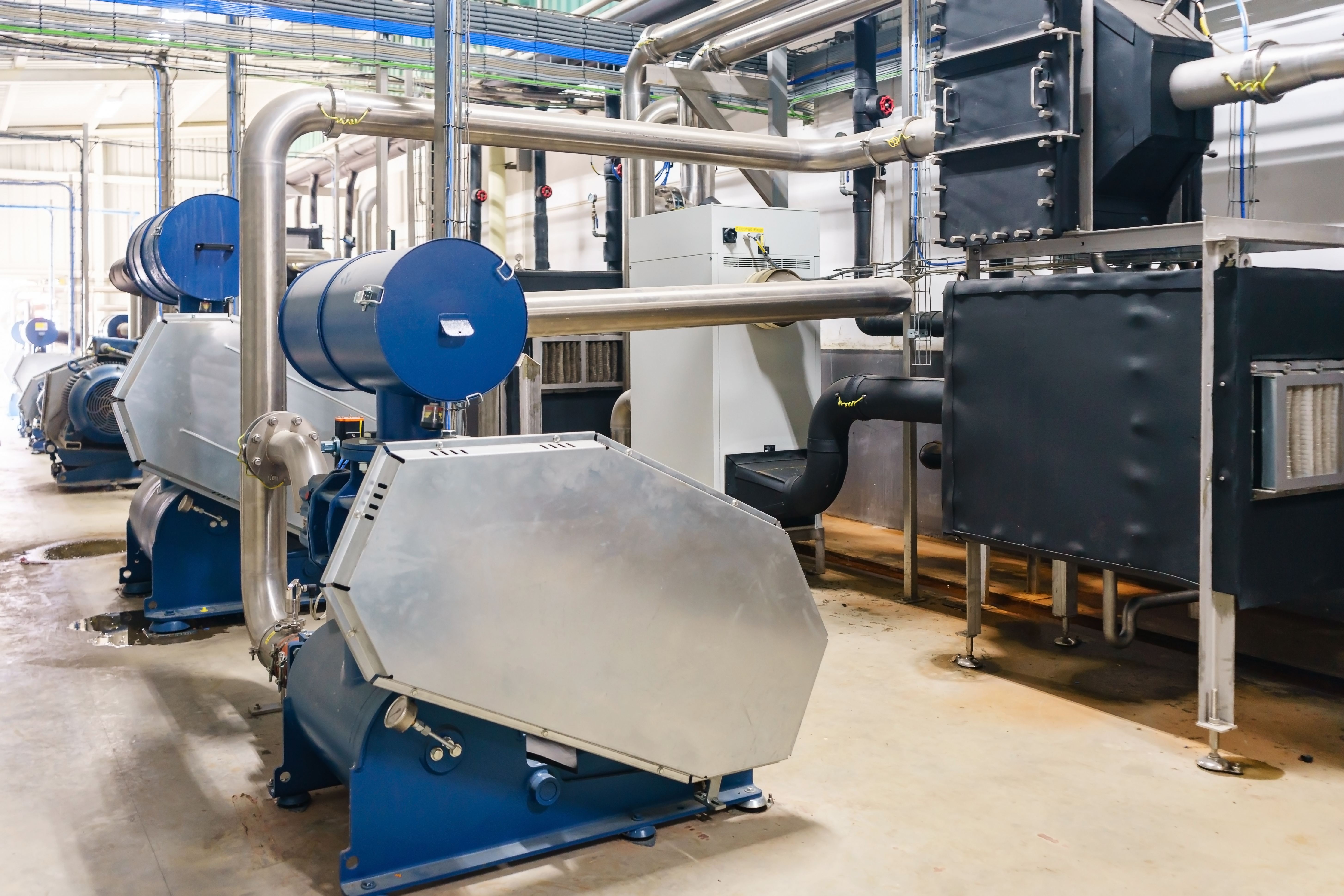

In manufacturing products that require spray coatings or drying cycles for granulated products, the consistency of product size or appearance can be affected by the drying system performance. Bed dryers and drum dryers are typical systems used and they require high accuracy and repeatability for consistent control of the drying process.

Motor cages at pump stations require air purging to prevent the accumulation of vapors.  Fox Meters can monitor air flow to detect interruptions that can cause damage to the system.

Air monitoring applications benefit from Fox Flow Meters' accurate and repeatable measurement of mass flow rate, fast response, and low-flow sensitivity.

horizontal line

Air flow monitoring applications include:

  • Air Injection
  • Combustion Air
  • Compressed Air
  • Cooling Air
  • Dryer Air
  • HVAC
  • Leak Detection
  • Purge Air
  • Seal air flow
  • Wastewater Aeration
  • Ventilation

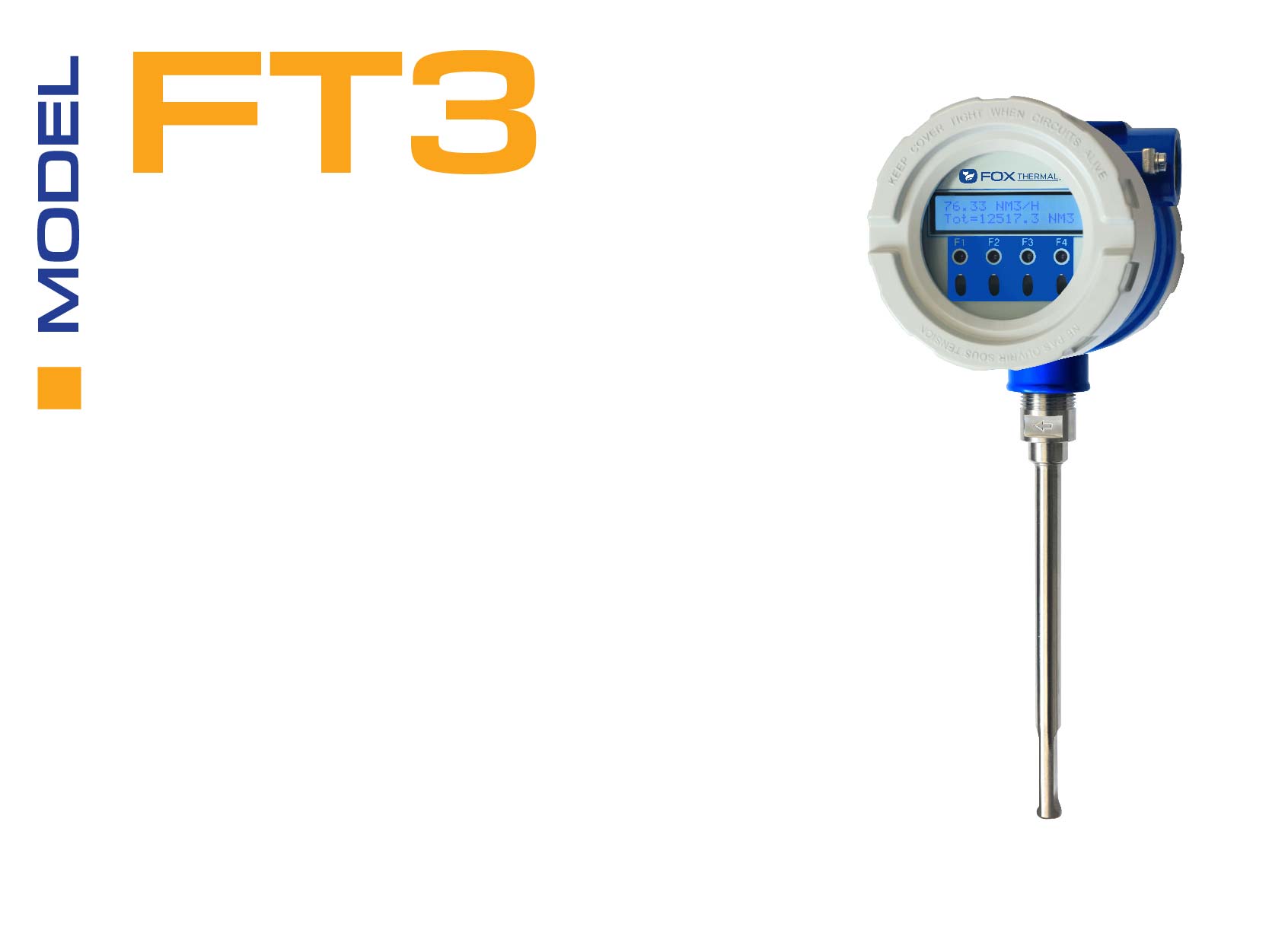

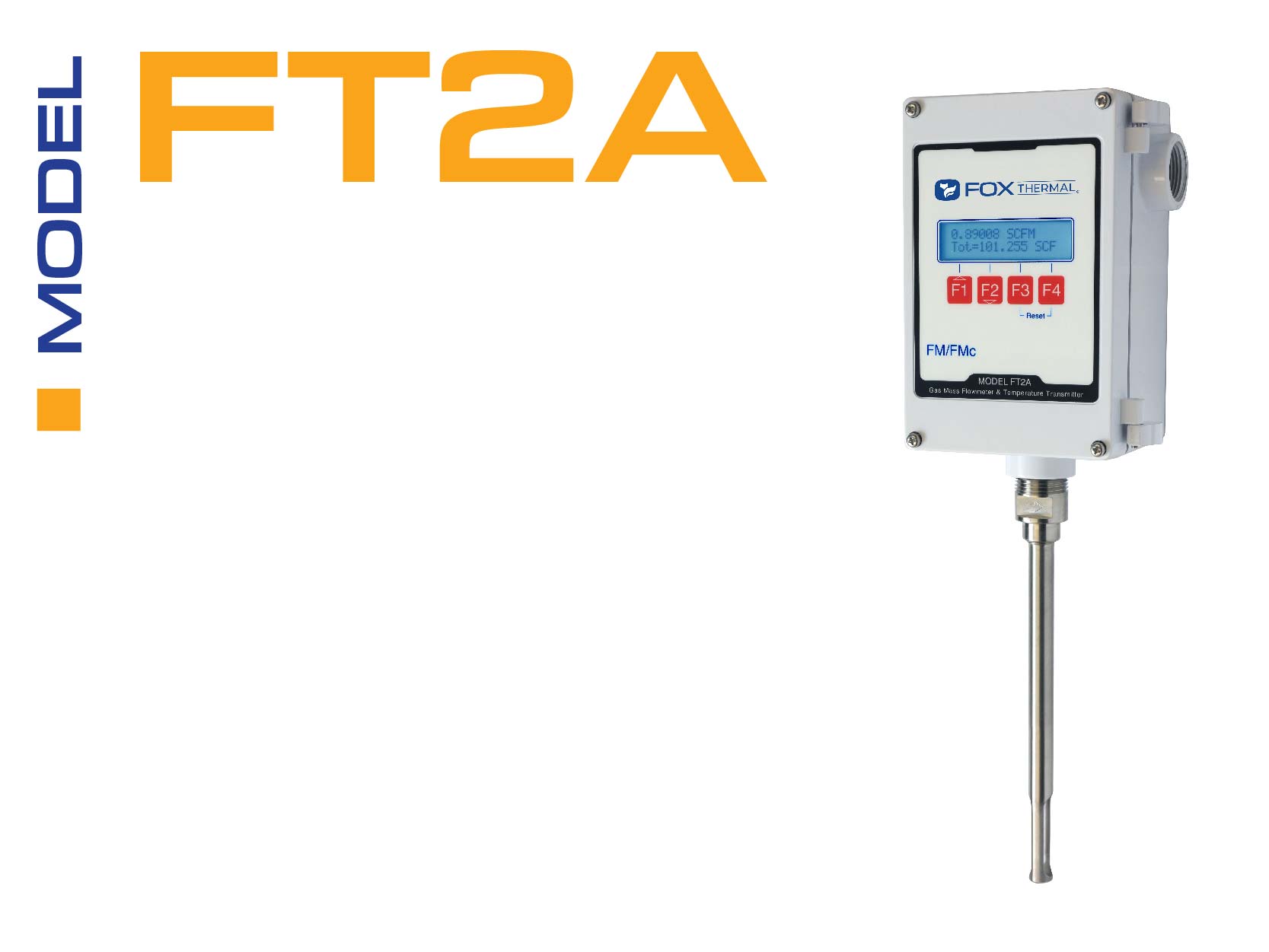

Fox Thermal Instruments strives to design and manufacture the most innovative and reliable thermal mass flow meter products to our customers. All Fox meters measure mass flow rate and are available in insertion and inline models. Fox models FT3 and FT2A are mass flow meters and temperature transmitters providing isolated 4 to 20mA and pulse output for flow rate, and a 4 to 20mA pulse output for process gas temperature or a second flow rate output.

Please review the product features for Models FT3 and FT2A for further information about our thermal mass flow meter products or Contact Us today!
